Product Description:
The 6″ Vacuum Mounting Suction Cup features a built-in spring-balanced pump with a Pressure Warning Indicator, allowing easy attachment to any smooth surface of a car or vehicle, whether flat or curved. Specially designed suction pads protect your vehicle from scratches and damage. With a maximum load capacity of up to 90kg, this suction cup offers robust performance. The top of the base is equipped with various female threads and studs, including G1/4-20, G3/8-16, M6, M8, and other customizable sizes.
Features & Benefits:
[Rock-Solid Stability, Say Goodbye to Falling Worries]
Innovative vacuum pump technology and a reinforced rubber base ensure secure attachment.
[Durable and Adaptable to All Environments]
Made with high-strength materials and temperature-resistant rubber for harsh environments.
[Endless Possibilities, Powerful Expandability]
Multiple standard interfaces for easy equipment expansion and customization.
[Effortless Operation, Ready in Seconds]
Simple to install and release, offering fast and efficient operation.
[Versatile Solution]
Ideal for cameras, glass installation, and more.
Technical Specifications：
| Specification | |
| Model No.: | HD-150 |

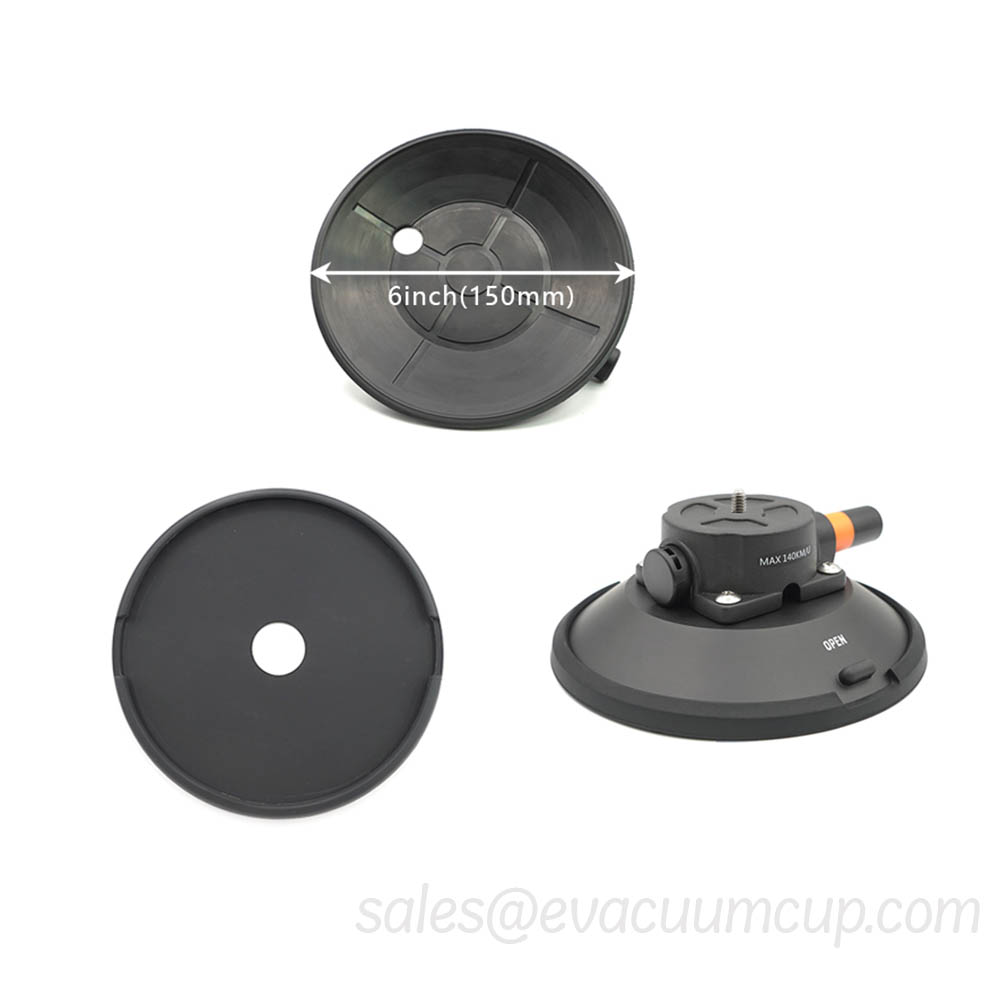

| Cup Diameter | 6″ (150mm) |
| Vacuum pad | Concave |
| N.W | 450g |
| Load Capacity | 154 lbs [70 kg] |
| Maximum Load Capacity | 198 Ibs/ 90 kgs |
| Working Temp. Range | -22°F to 140°F |
| Material： | Aluminum Mount |
| ABS Plastic Pump | |
| Wear-resistance Rubber Pad | |
| Package： | 1pc / white Box |
| Conection method： | 1.Various thread & stud available 2. OEM is welcome |
| Remark | Customized Free of Logo |
1. Use the suction cup on clean & smooth & nonporous surface, at Temp. from-22°F to 140°F [-30°C to 60°C].
2. The vacuum indicator may not perform reliably at elevations above 5000 feet [1524 meters].
3. The suction cup can lift 300% of the safe load for a while.
OEM:
However, if our ready-made items doesn’t match your exact requirements, our engineers who have 8-12 years experiences can design and manufacture completely new products, or modify an existing design, to address specialized applications.
The Factory-Direct Advantage:
1. Purpose-Built Materials: We don’t use a one-size-fits-all approach. This product was developed with a specific material science solution for a specific problem.
2. Rigorous Testing: Our mounts undergo extensive testing for load capacity, UV degradation, and material integrity to ensure they perform reliably in the real world.
3. Expert Support: Our team has the technical knowledge to help you choose the right solution for your project.
