Product Description:
We provide the essential components of the vacuum suction system, including the rubber pad and air pump. Users can customize the mounting solutions to meet their specific requirements, ensuring a seamless fit with the suction cup for optimized cost efficiency and optimal performance.
Features & Benefits:
- Provides a reliable, temporary vacuum mount, without drilling holes.
- Rubber vacuum pad will not mark or damage most surfaces.
- Eye-catching indicator warns user of any vacuum loss.
- OEM top mounting
Technical Specifications：
The below items can use the same mounting.
| Item No. | Vacuum Pad | Pad Diameter | Load Capacity |

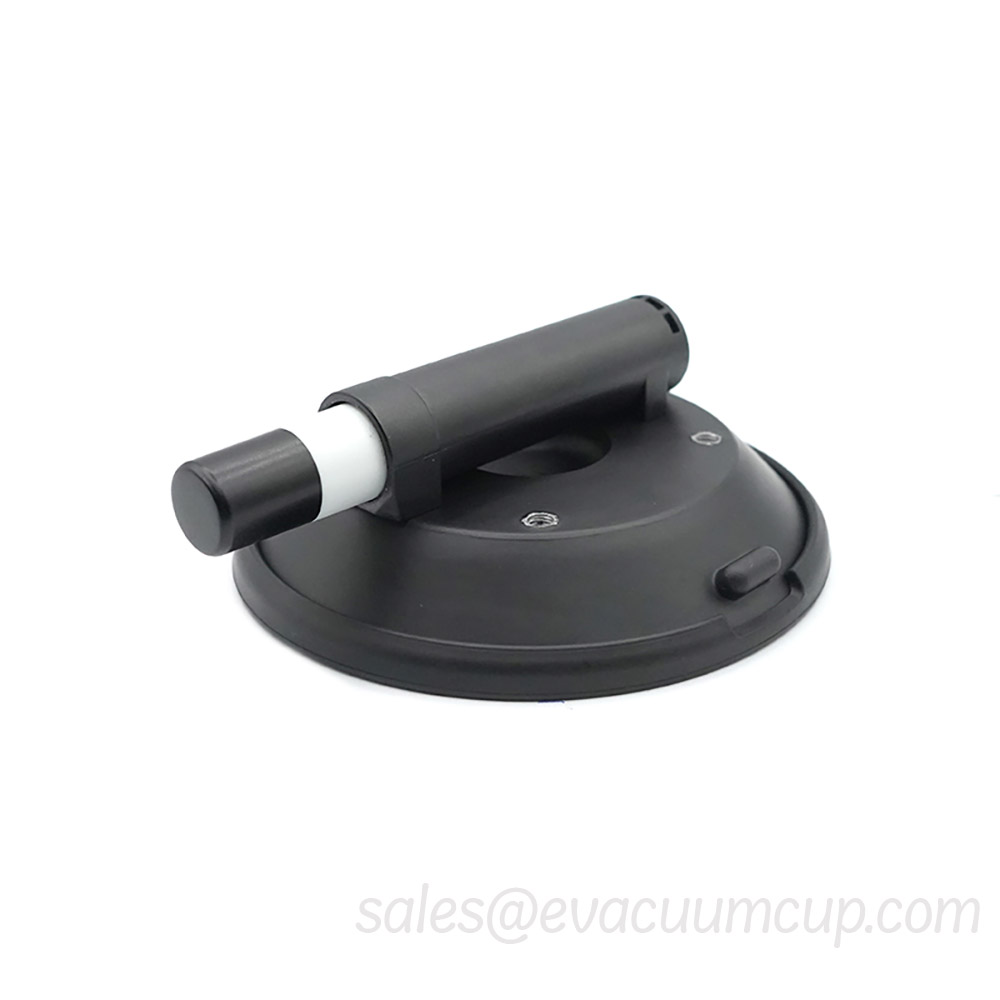

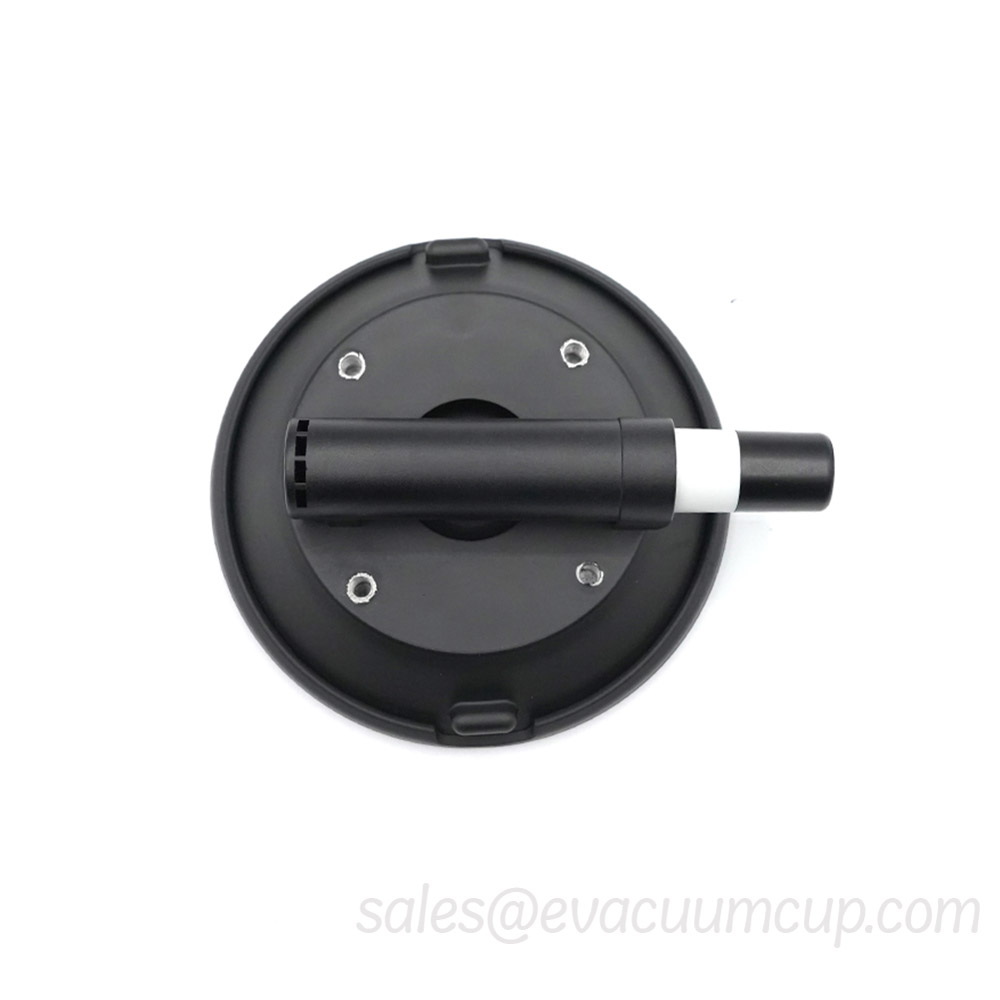

| HD-120 | Curved | 4.5″ [120mm] | 110 lbs [50 kg] |

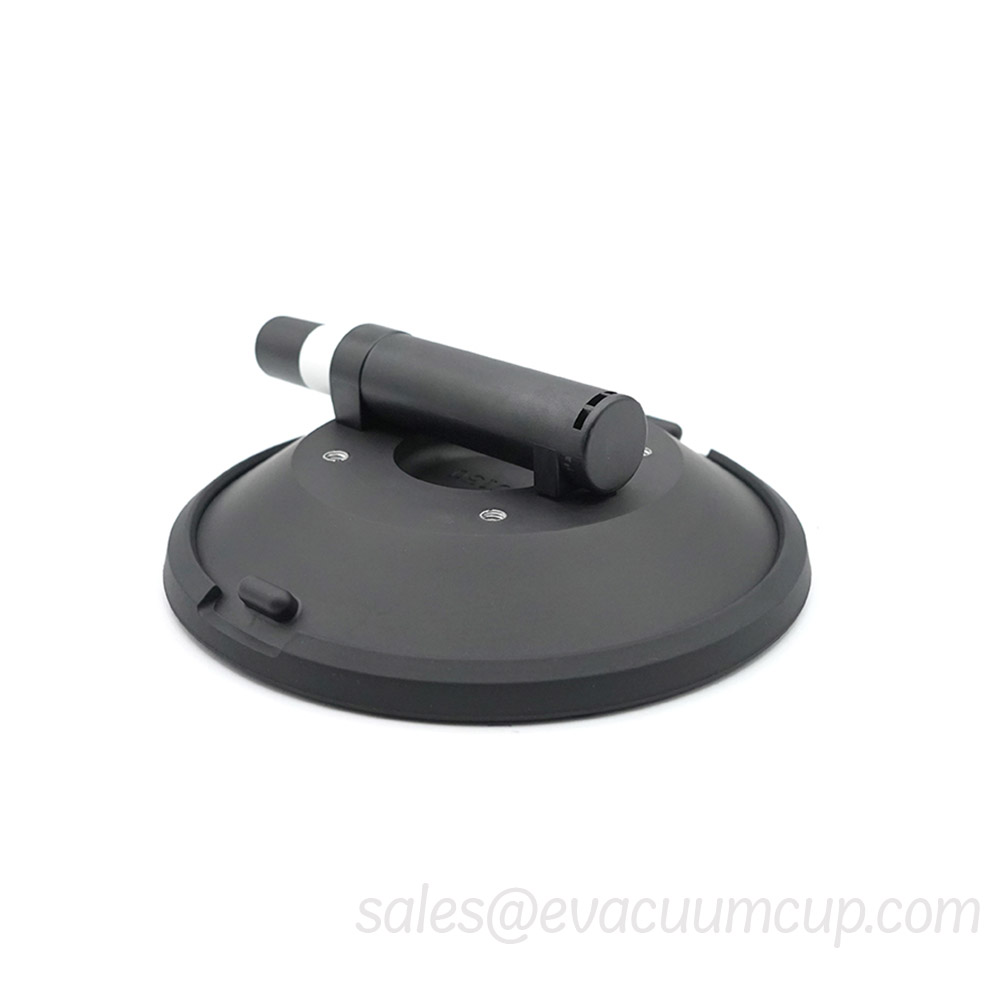

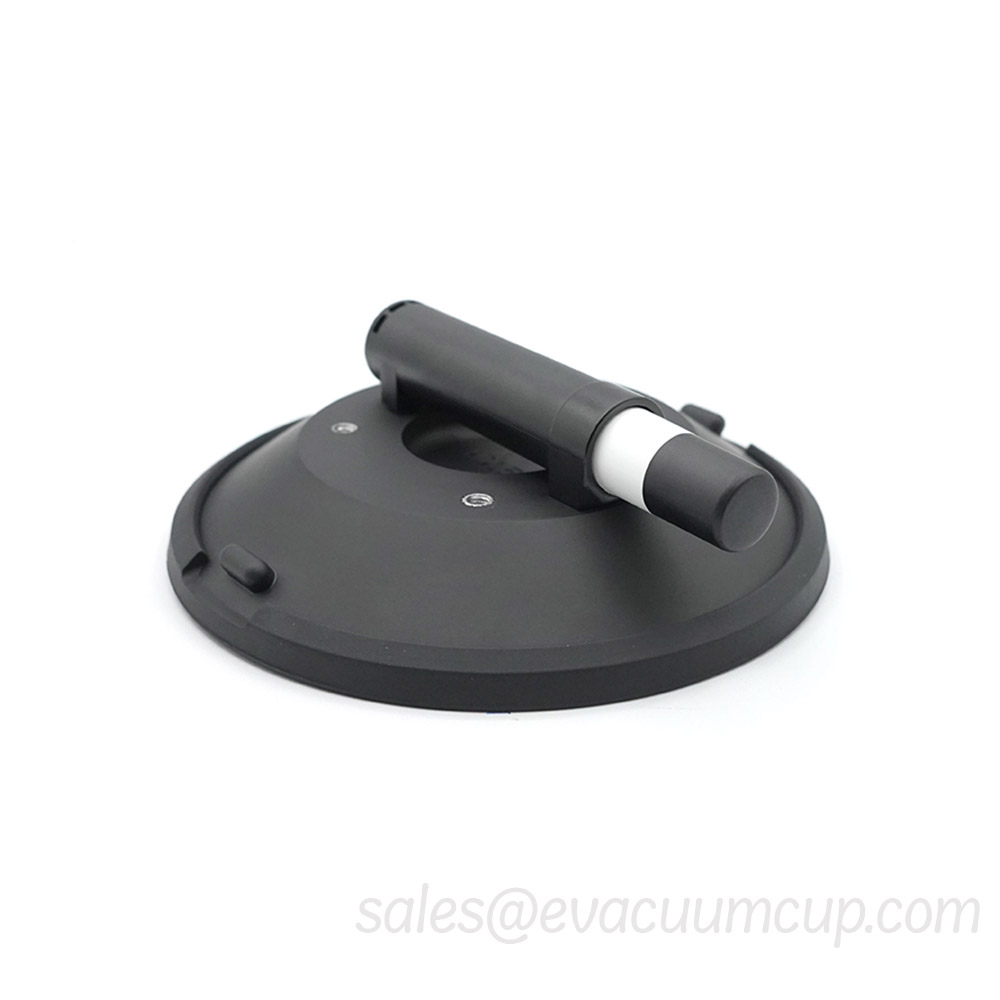

| HD-150 | Curved | 6″ [150mm] | 154 lbs [70 kg] |
| RC450 | Flat | 4.5″ [120mm] | 110 lbs [50 kg] |
| RC500 | Flat | 5″ [130mm] | 132 lbs [60 kg] |
| RC600 | Flat | 6″ [150mm] | 154 lbs [70 kg] |
1. Use the suction cup on clean & smooth & nonporous surface, at Temp. from-22°F to 140°F [-30℃C to 60°C].
2. The vacuum indicator may not perform reliably at elevations above 5000 feet [1524 meters].
3. The suction cup can lift 300% of the safe load for a while.
OEM:
Adding logo is welcome
The Factory-Direct Advantage:
1. Purpose-Built Materials: We don’t use a one-size-fits-all approach. This product was developed with a specific material science solution for a specific problem.
2. Rigorous Testing: Our mounts undergo extensive testing for load capacity, UV degradation, and material integrity to ensure they perform reliably in the real world.
3. Expert Support: Our team has the technical knowledge to help you choose the right solution for your project.
