Mini Vacuum Mounting Cups: Damage-Free Mounting for Vehicles & Smooth Surfaces
Meta Description: Discover our versatile mini vacuum mounting cups with flat or curved pads. Ideal for securely mounting phones, cameras, and GPS in vehicles without drilling. Features a safety indicator and multiple thread options.
(Introduction)
Achieve stable, hands-free mounting for your electronic devices without drilling a single hole. Our Mini Vacuum Mounting Cups are expertly designed to provide a powerful, temporary, and completely reversible mounting solution. Ideal for securing cell phones, GPS units, cameras, and other equipment in vehicles, these compact mounts deliver rock-solid stability on any clean, smooth, non-porous surface.
Engineered for Confidence and Versatility
As veteran manufacturers, we understand that a reliable mount is built on a foundation of smart design and superior materials. We have engineered these mini cups to be both user-friendly and exceptionally secure.
Advanced Features for Secure and Easy Operation:

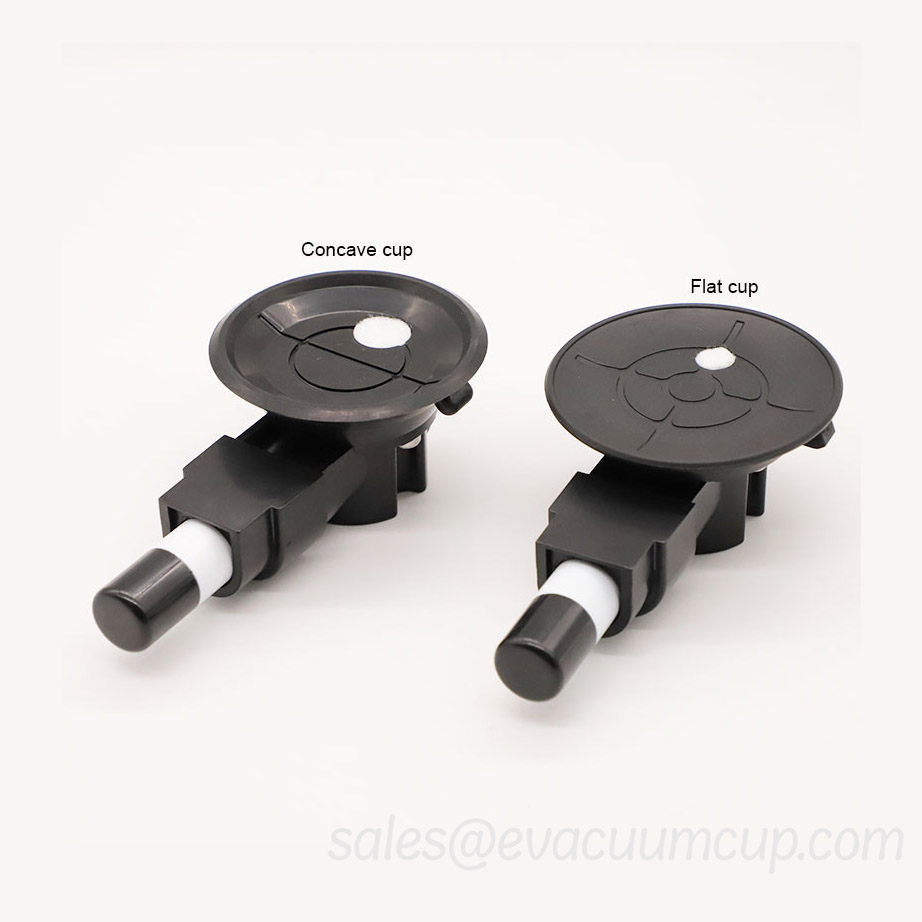

- Adapts to Your Surface: With both flat and curved vacuum pad options, these mounts can securely attach to flat glass, dashboards, or slightly curved body panels.
- Visual Safety Indicator: The integrated, eye-catching indicator provides at-a-glance confirmation of a secure vacuum. It proactively warns you of any significant vacuum loss, allowing you to re-pump long before the hold is compromised.
- Damage-Free Application: The specially formulated rubber vacuum pad provides a powerful grip without leaving marks, stains, or damage on your vehicle’s delicate surfaces.
- Instant Release: Integrated lift tabs on the pad’s edge allow you to break the vacuum seal instantly for quick and effortless removal or repositioning.
Product Parameters & Technical Specifications
Choose the model that precisely fits your application and load requirements.
| Item No. | Vacuum Pad Profile | Diameter | Safe Working Load (SWL)* |
|---|---|---|---|
| HD-63 | Curved | 2.5″ [63mm] | 33 lbs [15 kg] |
| HD-75 | Curved | 3″ [75mm] | 33 lbs [15 kg] |
| RC300 | Flat | 3″ [75mm] | 44 lbs [20 kg] |
Versatile Connection Options for Seamless Integration
To ensure maximum compatibility with your devices, we offer a wide array of standard and custom connection methods.
- (A) Stud Mounts: 1/4″ Long 1/4-20 Stud & 1/4″ Long 3/8-16 Stud.
- (B) Threaded Holes: 1/4-20 and 3/8-16 female threads.
- (C) Metric Options: M6, M8, or other specified metric sizes.
- (D) Custom Solutions: As the direct manufacturer, we can provide other stud and threaded configurations to meet your specific OEM/ODM project requirements.
Expert Usage Guidelines for Optimal Performance
To ensure safety and reliability, please follow these expert recommendations based on our extensive product testing and experience.
- Surface & Temperature: For maximum adhesion, always use the suction cup on a clean, smooth, and non-porous surface. The operational temperature range is -22°F to 140°F (-30°C to 60°C).
- Altitude Considerations: Due to changes in atmospheric pressure, the vacuum indicator and overall performance may be less reliable at elevations above 5000 feet (1524 meters).
- Understanding Load Capacity: The “Safe Working Load” (SWL) listed is the recommended maximum for continuous, reliable use. While the cup has a breakaway strength of up to 300% of the SWL for brief moments, you should never exceed the stated SWL in your application to ensure safety.
Ready to implement a secure, drill-free mounting solution? Contact our expert team today to select the right model or to discuss your custom OEM project needs.
