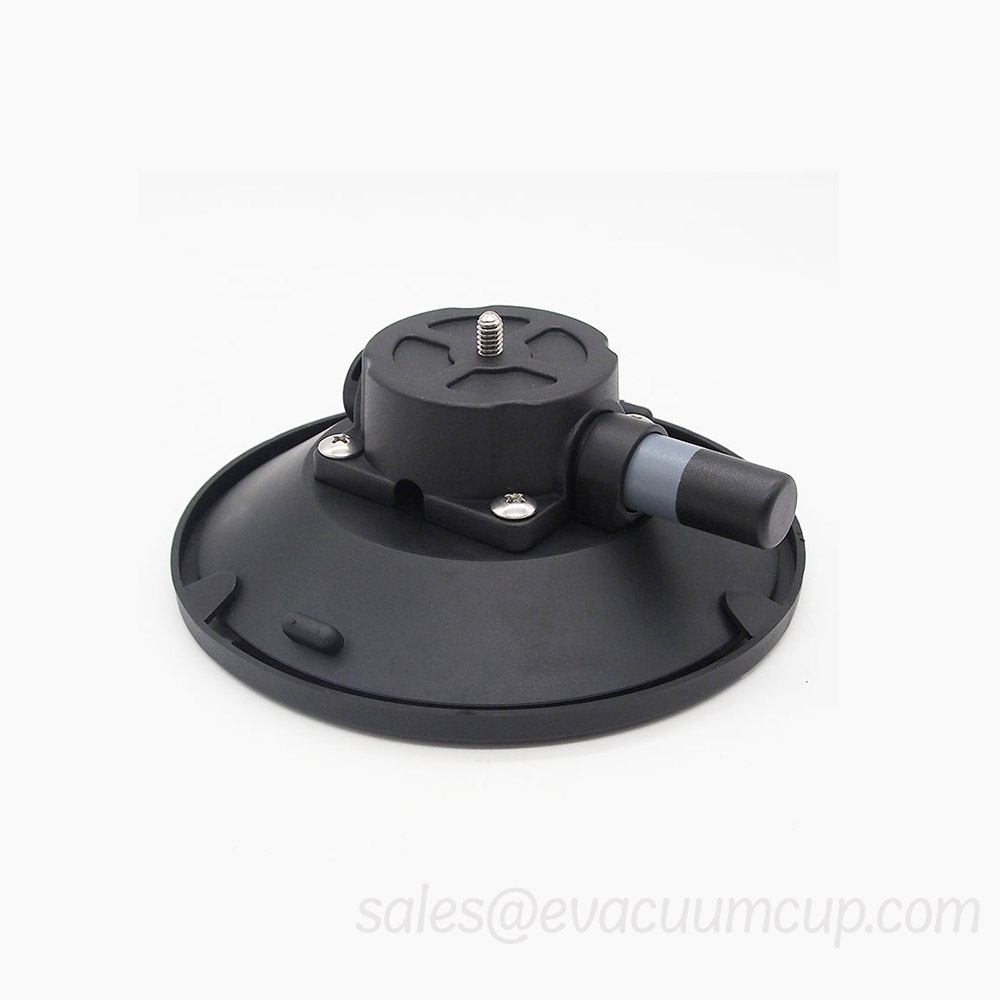

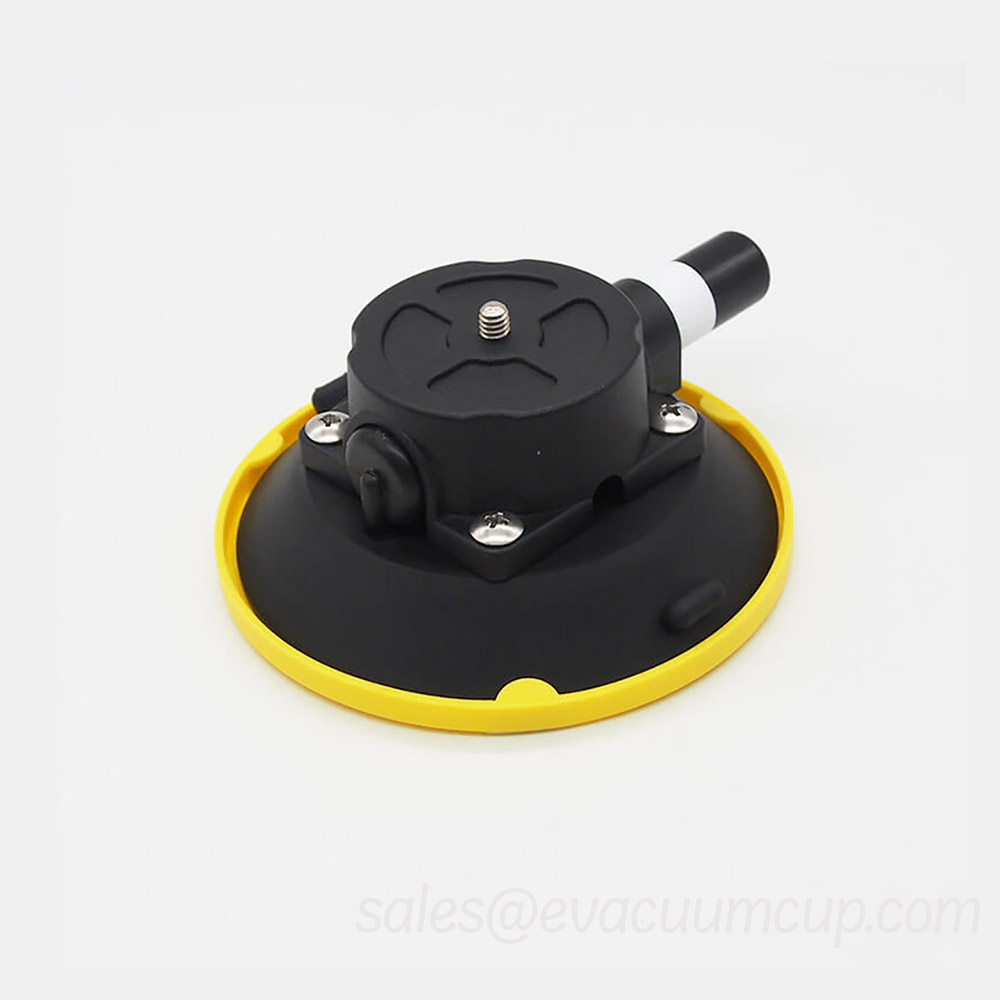

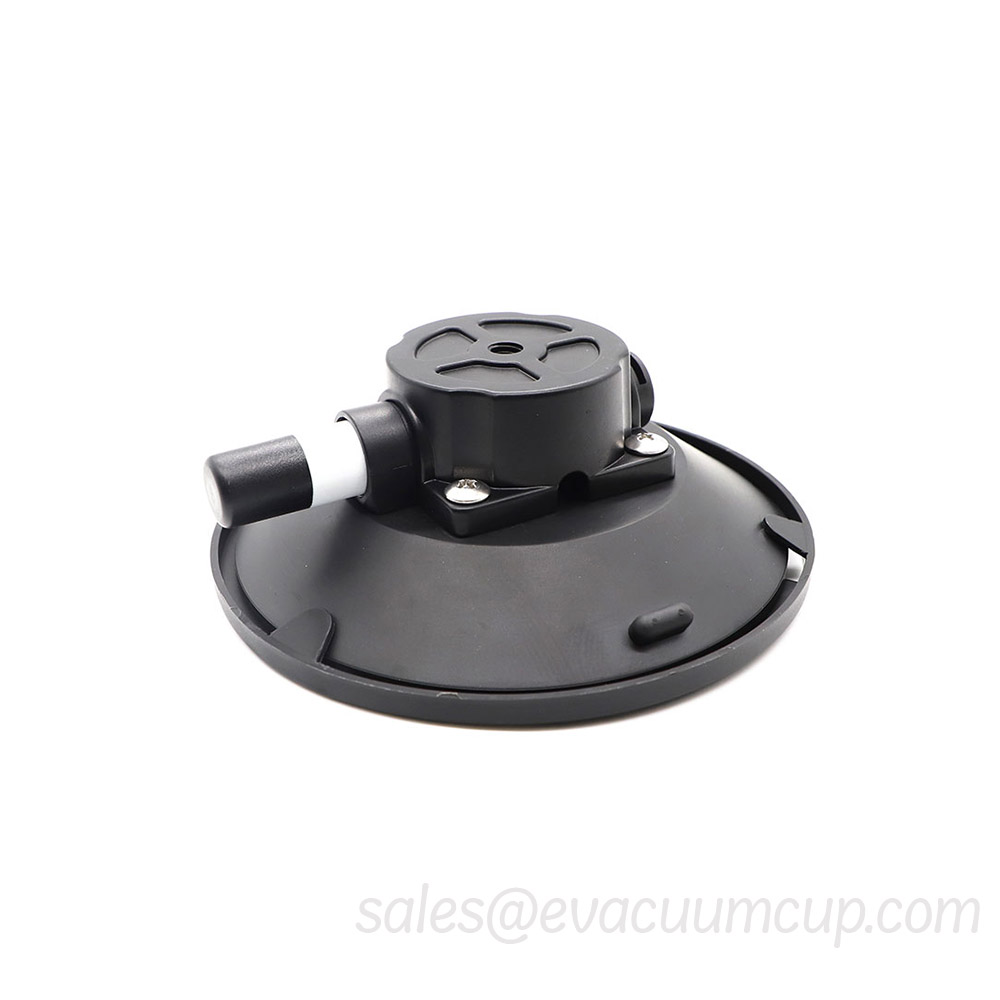

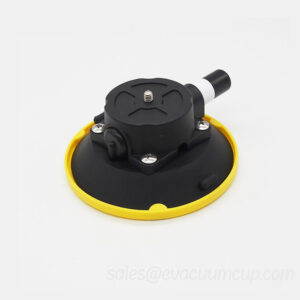

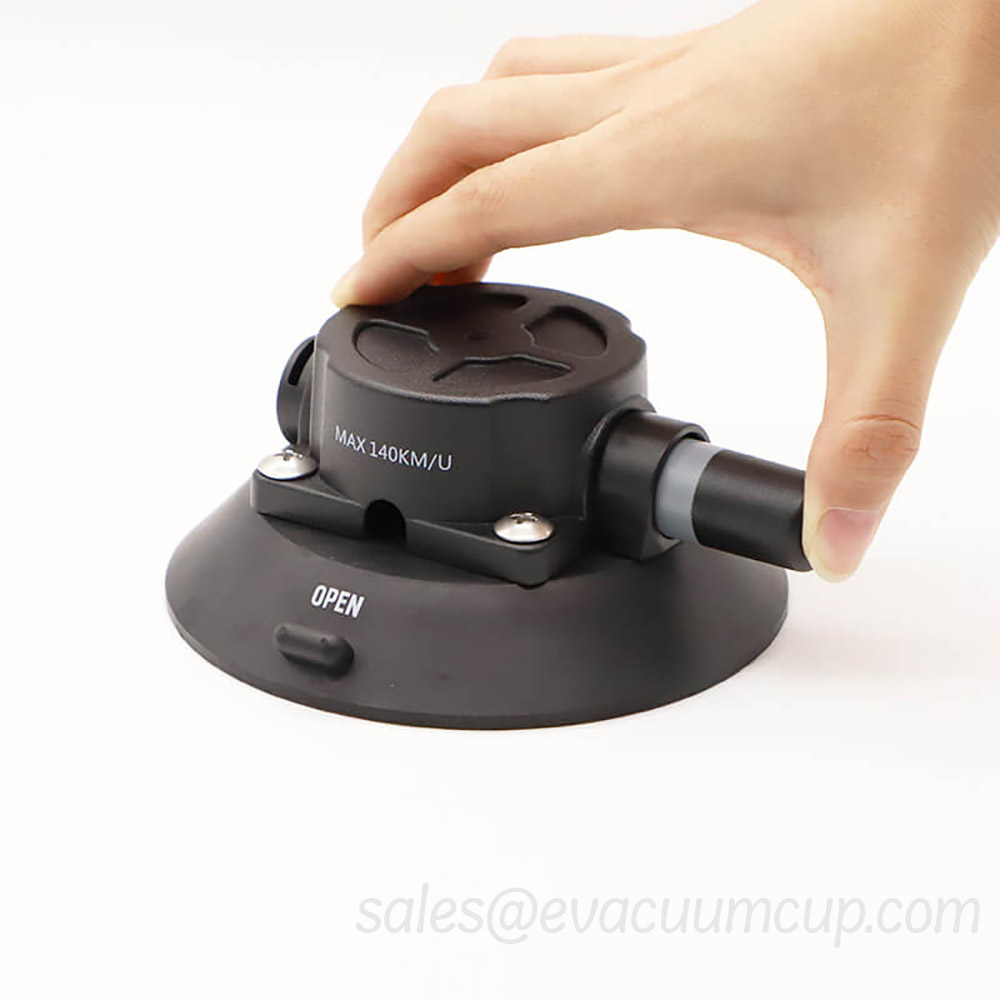

Heavy-Duty Vacuum Suction Cup Mount

Looking for a powerful, non-damaging way to mount your camera, professional lighting, antenna, or other equipment? Our Vacuum Mounting Cup is your perfect solution. Engineered with a built-in, spring-balanced pump and a pressure warning indicator, it is designed to provide an exceptionally strong grip on smooth, nonporous flat or curved surfaces like glass, metal, or car bodies. It’s portable, easy to use, and incredibly secure.



Product Properties

Top Base: Aluminum alloy

Pad Size: 4.5inch / 6inch

Work Surface: Curved

Rubber Type: UV-Resistant



    Key Features

    • Versatile Application: Attaches securely to flat or slightly curved, smooth, nonporous surfaces.
    • Damage-Free Installation: Provides a reliable, temporary vacuum mount without drilling, protecting your valuable equipment and mounting surfaces.
    • Visible Safety: The eye-catching red-line indicator warns the user of any significant vacuum loss, ensuring your gear stays put.
    • Surface Protection: The durable rubber vacuum pad is designed to provide a solid grip without marking or damaging surfaces.
    • Flexible Connectivity: Comes with various industry-standard connection methods, including 1/4″ and 3/8″ studs and threaded holes, for easy integration with your existing gear.

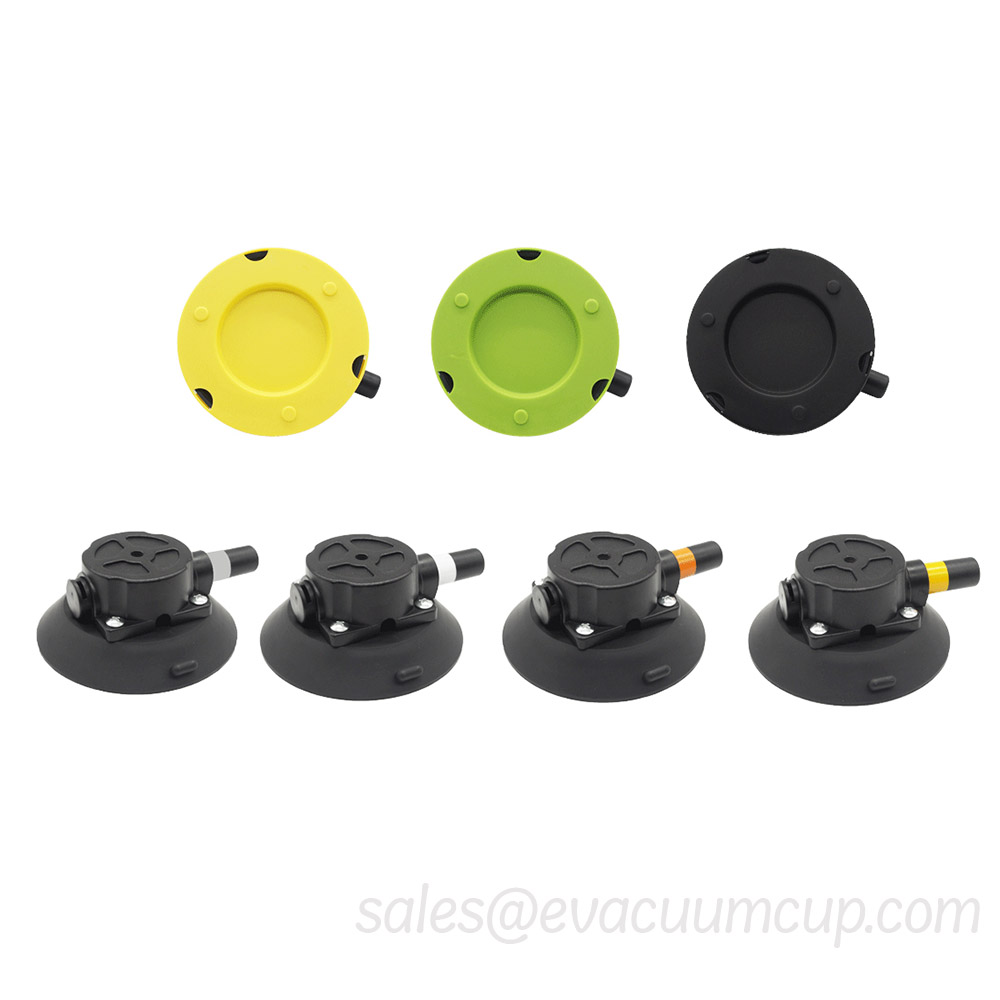

    • Multiple Sizes: Available in diameters from 4.5″ (100mm) to 6″ (150mm) to meet various load requirements.



    Common Use Cases

    Our vacuum mounting cups are the ideal tool for professionals and hobbyists alike, including:

    • Filmmaking & Photography: Securely rig cameras, monitors, and lighting equipment on cars, windows, and any smooth surface.
    • Industrial Inspection: Mount sensors, meters, or other testing tools without permanent fixtures.
    • Outdoor Adventures: Temporarily attach antennas or action cameras to vehicle bodies.
    • Home & Workshop: Provide a temporary but strong anchor point for various tasks.



    Product Specifications

    Item No. Vacuum Pad Diameter Load Capacity
    HD-120 Curved 4.5″ [120mm] 110 lbs [50 kg]
    HD-150 Curved 6″ [150mm] 154 lbs [70 kg]
    Connection methods available: Stud and Threaded hole is OK, welcomed OEM specified connection points.

    Important Usage Notes

    1. Use on Clean Surfaces: Always use the cup on a clean, dry, smooth, and nonporous surface. Recommended for use in temperatures ranging from -22°F to 140°F (-30°C to 60°C).
    2. High Altitude Advisory: The vacuum indicator may not perform reliably at elevations above 5000 feet (1524 meters).
    3. Safety Margin: While the suction cup can lift 300% of the rated safe load for a short while, always adhere to the specified “Load Capacity” for regular and safe operation.
