Product Description:

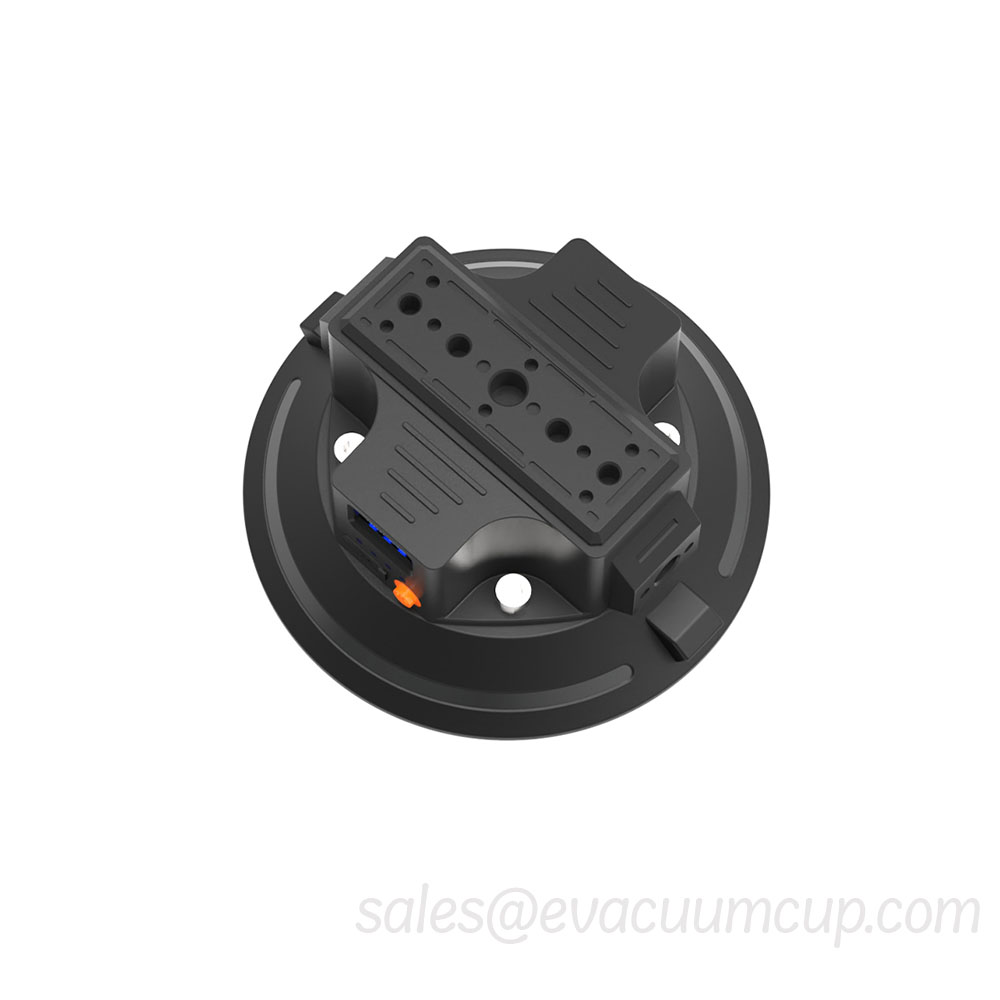

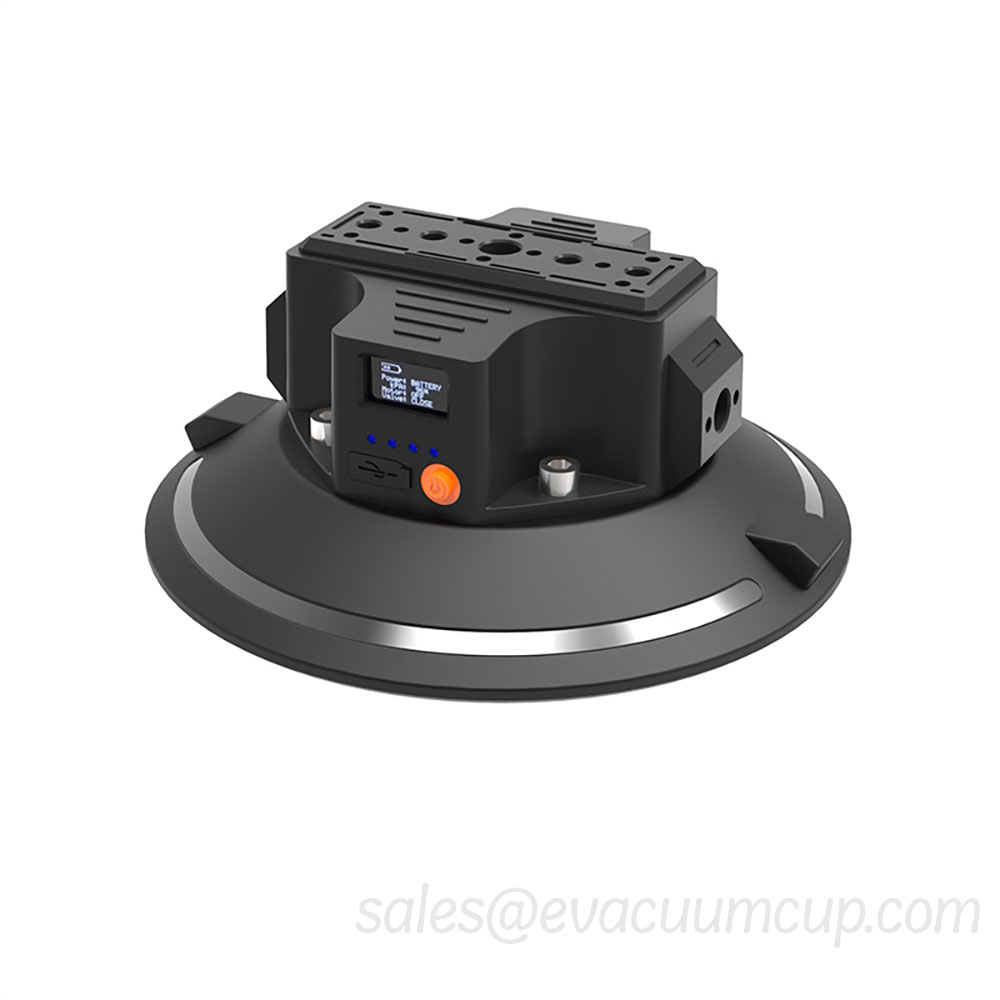

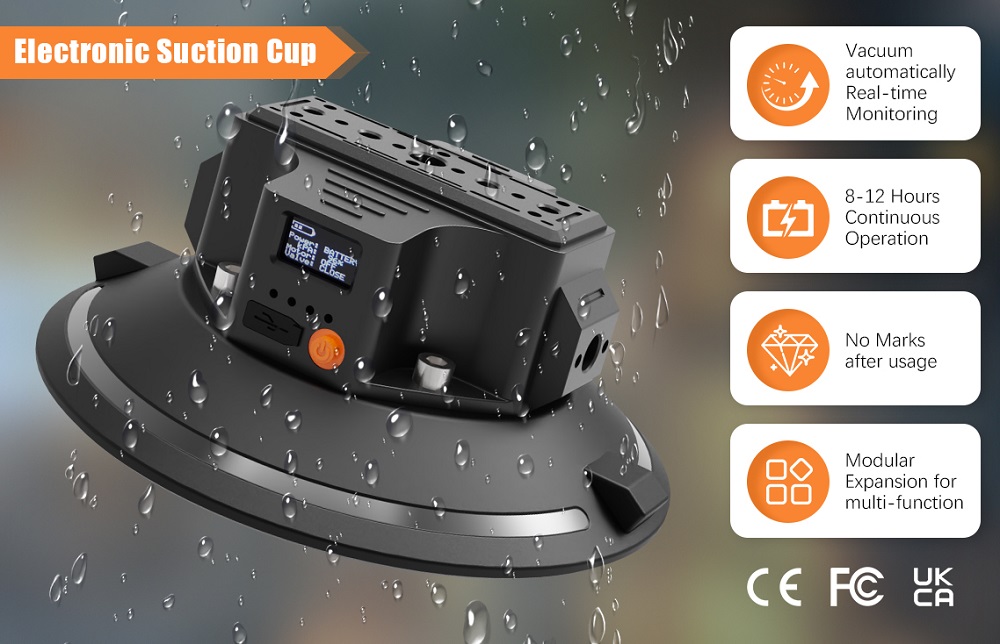

Brand-New Electric Suction Cup – Powerful, Safe, and Effortless

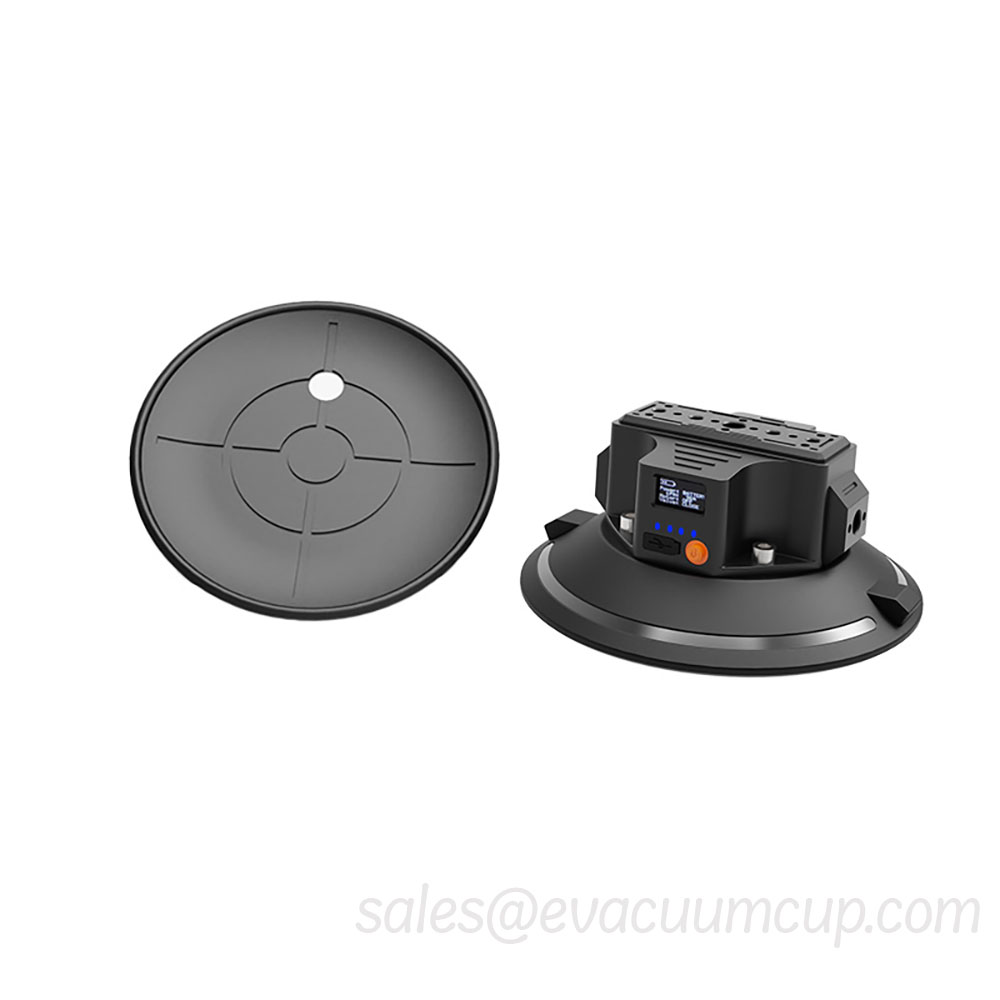

Equipped with a high-performance built-in air pump and battery, it enables one-touch electric suction. The integrated 1100mAh high-capacity battery ensures reliable performance. With three interchangeable top modules, it offers versatile expansion and supports air leak detection. Available in sizes from 4.5” to 6”, it guarantees device safety and delivers a completely refreshed shooting experience.
Features:
- Auto-Pressure Compensation: Smart technology always maintains vacuum – no more air leakage worries!
- Smart Flexibility: Multi-functional connections (G1/4-20, G3/8-16, F22) adapt to diverse setups.
- Unmatched Durability: IP65-rated protection
- Ultra-Long Standby: Battery 1100mAh , Works non-stop for 144H
- Global Compliance: CE, FCC, UKCA certified for seamless market entry.
How To Use:
1. Remove the protective cover of the suction cup and check that there is no damage on the sealing lip of the suction cup.
2. Clean the rubber pad and target surface to be sucked with a clean, lint-free towel.
3. Place the suction cup on a flat and smooth surface.
4.Press and hold the orange button for 2 seconds to power the device on or off.
5. Single press the orange button to activate suction; the process completes within 3–5 seconds, with “100%” displayed on the screen upon successful attached.
6. Double-click the orange button to complete the pressure-relief work.
7. If no operation is performed after power-on, the device activates energy-saving mode (screen off) and automatically powers off after 1 minute.
8. If suction cups fails to attach within 15 seconds, the screen displays a warning “⚠” and the an alert will be triggered, then the power will cut off after one minute.
Special note: When the suction cup has continuously operated until its battery is completely drained, it will still maintain the vacuum adsorption state.
[Attention]
· The product main body has a built-in 3.7V 1100MAH lithium-ion battery and supports external power supply through the Type-C interface.
· The suction cup has about 75% power when it leaves the factory and can be used directly without worry.
· It has a built-in highly sensitive electronic detection function for automatic pressure compensation. There is no need to worry about air leakage, ensuring that the suction cup is in a safe state at all times.
Technical Specifications：
Choose the right model for your specific load requirements.
| Item No. | Vacuum Pad | Pad Diameter | Load Capacity |
| EC-120 | Curved | 4.5″ [120mm] | 110 lbs [50 kg] |
| EC-150 | Curved | 6″ [150mm] | 154 lbs [70 kg] |
| EC450 | Flat | 4.5″ [120mm] | 110 lbs [50 kg] |
| EC500 | Flat | 5″ [130mm] | 132 lbs [60 kg] |
| EC600 | Flat | 6″ [150mm] | 154 lbs [70 kg] |
OEM:
However, if our ready-made items doesn’t match your exact requirements, our engineers who have 8-12 years experiences can design and manufacture completely new products, or modify an existing design, to address specialized applications.
The Factory-Direct Advantage:
1. Purpose-Built Materials: We don’t use a one-size-fits-all approach. This product was developed with a specific material science solution for a specific problem.
2. Rigorous Testing: Our mounts undergo extensive testing for load capacity, UV degradation, and material integrity to ensure they perform reliably in the real world.
3. Expert Support: Our team has the technical knowledge to help you choose the right solution for your project.
