Product Description:

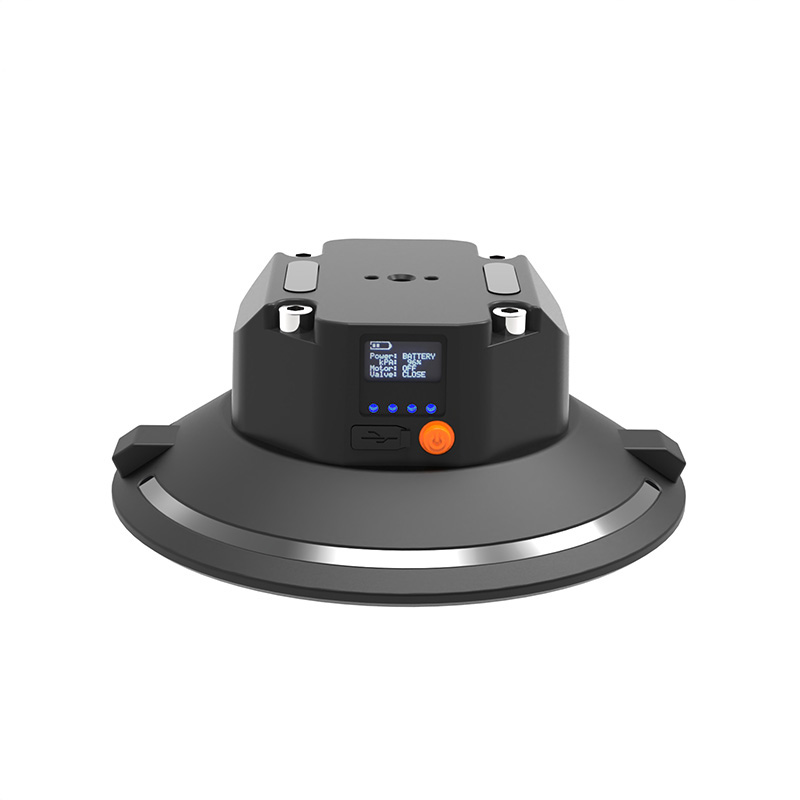

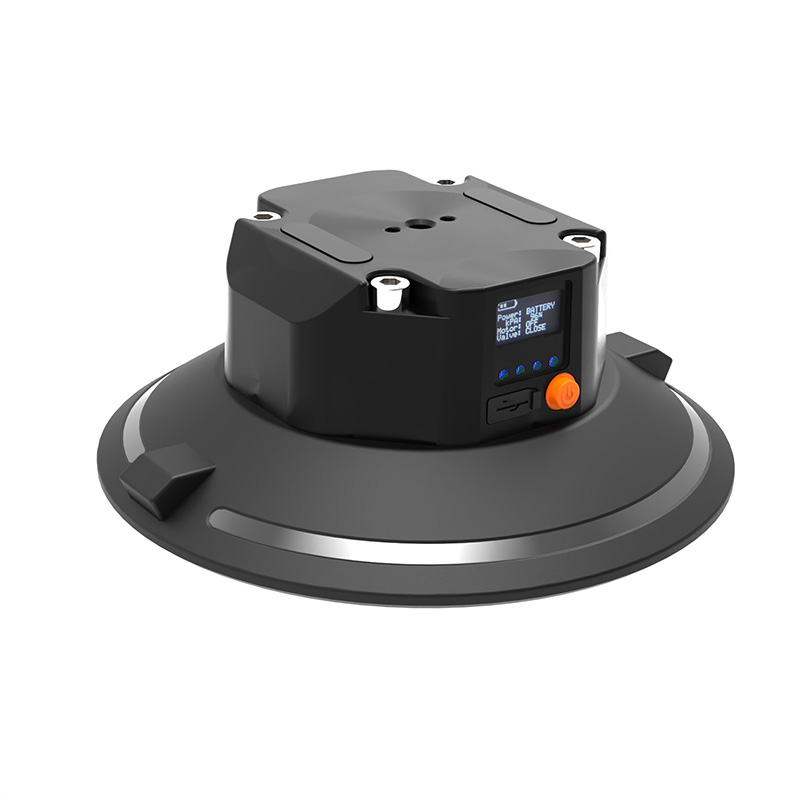

The Electronic Suction Cup is a revolutionary tool engineered to redefine efficiency and reliability for outdoor gear mounting. With an IP65-rated waterproof design and hermetic sealing, it ensures a powerful, secure hold—even in rain or on wet surfaces. It is equipped with an intelligent pressure monitoring and compensation system, which automatically maintains vacuum pressure—ensuring reliable suction even when the battery is fully drained. This electric vacuum suction cup is ideal for mounting cameras, bikes, and outdoor gear onto vehicles or other smooth, flat, or slightly curved nonporous surfaces—without causing any surface damage.
Features:
- Auto Pressure Compensation: Smart system automatically adjusts vacuum pressure to maintain suction — no air leakage worries.
- Standard central interface: Ensures force is applied to the center. Default is G1/4-20, but customization is also available.
- Durable & Waterproof: IP65-rated for protection against dust and water.
- Ultra-Long Standby: Built-in 1100mAh lithium battery delivers 144 hours of continuous use.
- Certified Safe: CE, FCC, UKCA certified for global compliance.
- Real-Time Monitoring: LCD screen displays real-time vacuum pressure for safety and visibility.
- Surface-Friendly: Will not damage glossy surfaces on cars or other items
How To Use:
1. Remove the protective cover of the suction cup and check that there is no damage on the sealing lip of the suction cup.
2. Clean the rubber pad and target surface to be sucked with a clean, lint-free towel.
3. Place the suction cup on a flat and smooth surface.
4.Press and hold the orange button for 2 seconds to power the device on or off.
5. Single press the orange button to activate suction; the process completes within 3–5 seconds, with “100%” displayed on the screen upon successful attached.
6. Double-click the orange button to complete the pressure-relief work.
7. If no operation is performed after power-on, the device activates energy-saving mode (screen off) and automatically powers off after 1 minute.
8. If suction cups fails to attach within 15 seconds, the screen displays a warning “⚠” and the an alert will be triggered, then the power will cut off after one minute.
Special note: When the suction cup has continuously operated until its battery is completely drained, it will still maintain the vacuum adsorption state.
[Attention]
· The product main body has a built-in 3.7V 1100MAH lithium-ion battery and supports external power supply through the Type-C interface.
· The suction cup has about 75% power when it leaves the factory and can be used directly without worry.
· It has a built-in highly sensitive electronic detection function for automatic pressure compensation. There is no need to worry about air leakage, ensuring that the suction cup is in a safe state at all times.
Technical Specifications：
Choose the right model for your specific load requirements.
| Item No. | Vacuum Pad | Pad Diameter | Load Capacity |
| MC-120 | Curved | 4.5″ [120mm] | 110 lbs [50 kg] |
| MC-150 | Curved | 6″ [150mm] | 154 lbs [70 kg] |
| MC450 | Flat | 4.5″ [120mm] | 110 lbs [50 kg] |
| MC500 | Flat | 5″ [130mm] | 132 lbs [60 kg] |
| MC600 | Flat | 6″ [150mm] | 154 lbs [70 kg] |
OEM:
However, if our ready-made items doesn’t match your exact requirements, our engineers who have 8-12 years experiences can design and manufacture completely new products, or modify an existing design, to address specialized applications.
The Factory-Direct Advantage:
1. Purpose-Built Materials: We don’t use a one-size-fits-all approach. This product was developed with a specific material science solution for a specific problem.
2. Rigorous Testing: Our mounts undergo extensive testing for load capacity, UV degradation, and material integrity to ensure they perform reliably in the real world.
3. Expert Support: Our team has the technical knowledge to help you choose the right solution for your project.
